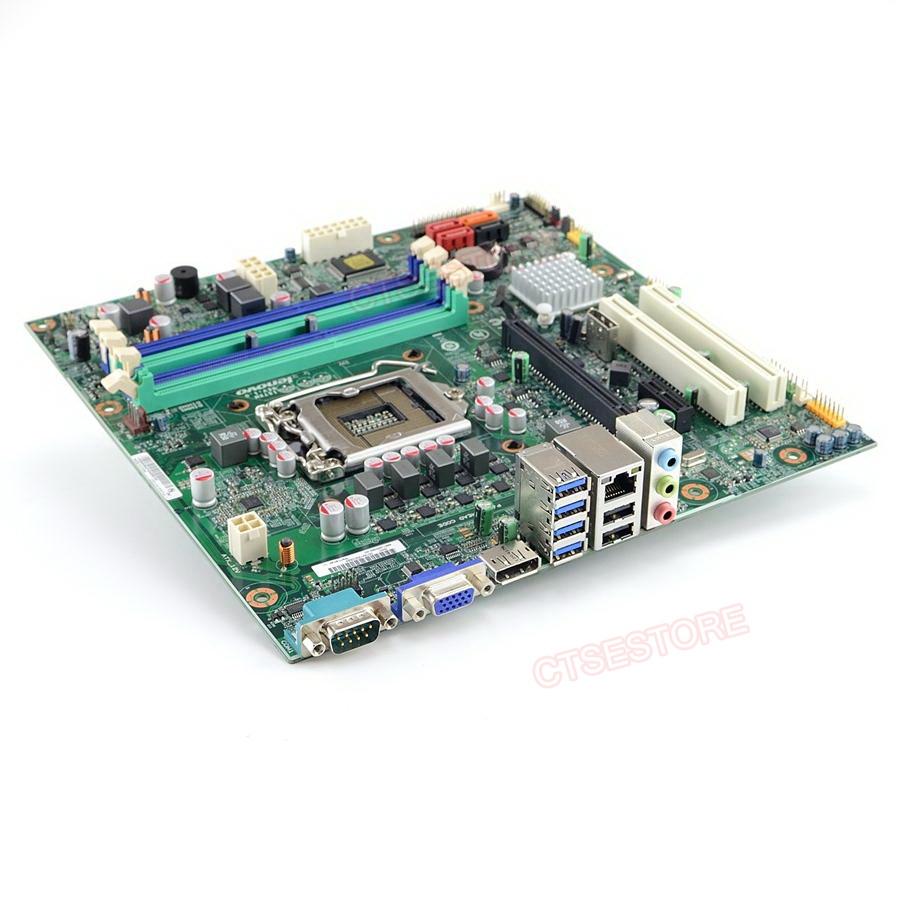

Lenovo ThinkCentre M92 / M92P Motherboard

Lenovo’s ThinkCentre is the best machine in a smaller package that provides easy portability along with customization options. Both the model is equipped with Intel Core i5-3470T dual-core Ivy Bridge CPU that runs on standard 2.9GHz or at 3.6GHz along with Intel’s Max Turbo Frequency.

However, M92P packs a 500GB hard drive which runs at 5400 rpm. As compared to other brands, the storage of Lenovo is quite expensive which delivers average performance. Most importantly, Lenovo offers four USB 3.0 ports–two on the front and two on the back.

The display present on this both of the motherboard support for up to three monitors. Moreover, if you extend your desktop across four monitors, it will help you to reduce errors and improve productivity.

Specification of Lenovo ThinkCentre M92 / M92P:



System board / Form factor / Processor
– Intel Q77 chipset for ThinkCentre M92/M92p – Tiny form factor
– Intel Sandy Bridge 35W
Ci3 2120T SANDY BRIDGE Stepping Q0 3MB 2c FCLGA 2.6GHZ 35W
Pentium G630T SANDY BRIDGE Stepping Q0 3MB 2c FCLGA 2.3GHz 35W
Pentium G530T SANDY BRIDGE Stepping Q0 2MB 2c FCLGA 2.0GHz 35W
G460 SANDY BRIDGE 1MB Q-0 1c FCLGA 1.8GHz 35W– Intel IVY Bridge
i5-3470T Ivy Bridge 2.9GHz/3MB/35W/LGA
Chipset
  • Intel Q77 chipset for ThinkCentre M92/M92p
Memory
  • Supports 2GB/4GB/8GB
  • Module Spec :PC3-12800 1600MHz DDR3 SODIM
    DIMM Slots : 2 SODIMM
Audio
  • Integrated Audio
Keyboard and mouse
  • Preferred Pro Fullsize Keyboard (USB)-business black
  • Preferred Pro Fingerprint Keyboard (USB) (for EPEAT gold)
  • Lenovo Ultra Slim Plus Wireless Keyboard and Mouse
  • USB Optical ScrollPoint
  • Lenovo Enhanced Optical USB Mouse
Communication
  • Intel 82579
  • 56KBPS Soft Modem V.90/V.44 – LP
  • PCI-E 1X Wifi  Card (Taylor Peak) (supports Wireless Vpro) )
  • PCI-E 1X Wifi  Card (Marble Peak)
  • PCI-E 1X Wifi  Card (Jackson Peak 1 w/Bluetooth)
Expansion
Standard I/O ports
  • Two High speed USB 3.0 (Front)
  • One Special High Speed USB 2.0 for ODD box (back)
  • Two high speed USB 3.0 (back)
  • Two audio connectors (microphone and headphone) on front panel
  • One integrated VGA port
  • Two audio connectors (audio line in and audio line out) on rear panel
  • One RJ45 connector
Power
Power management
  • Advanced Configuration and Power Interface (ACPI) support
Power supply
  • PPN. Tiny PC 65W adapter
  • AC Input Voltage Range – 100- 240Vac
Security
  • Security chip
  • Trust Platform Module (TPM1.2)
  • USB Individual disable/enable
  • Chassis Intrusion Switch
  • Computrace Support



M92/M92P motherboard includes some of the best security tools that are more require for industrial purpose. Also, it includes a USB port disable feature which will prevent data theft and network security risks. Meanwhile, the machine also includes a chassis intrusion switch that will alert against any unauthorized access attempts.

Moreover, at Laptech we deal with many more such kind of products which includes server, motherboards and etc. To know full detail about such products, do visit our website where you can get the best quality of products at an affordable price range. Do share your thoughts with us.
